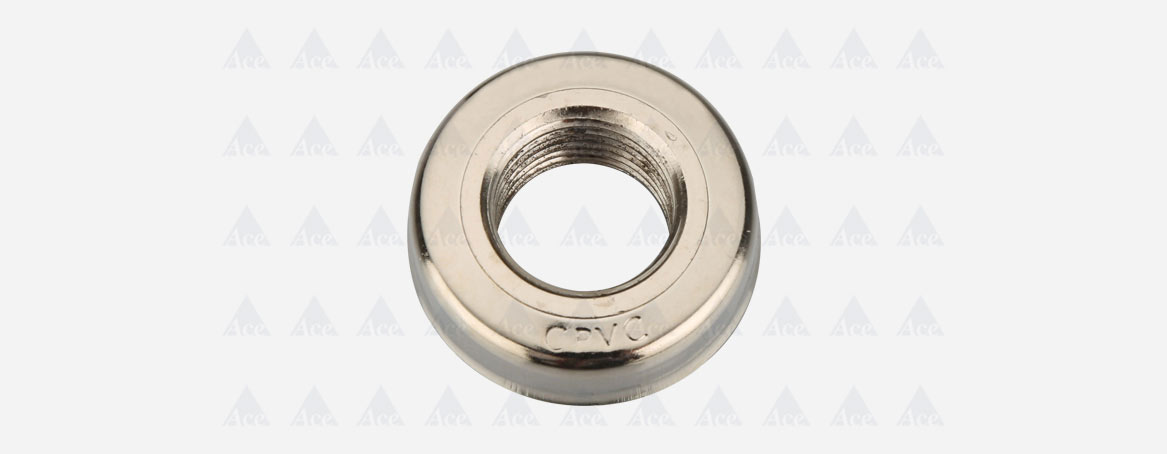

Insert with Steel Cap



Established in 2000, Ace Brass Industries specializes in the production of insert with steel cap especially for PPR-CPVC industry. Working from customer drawings, or samples, we produce insert with steel cap using the latest machining technology available. Using CAD CAM systems and off-line programming ensures optimum cycle times are achieved within budget. With our work scheduling software we deliver on time





Process We do

  • Turning
  • Forging
  • Milling
  • Stamping
  • Broaching




Material We Cater :

  • Brass Free Cutting Grade I, Grade II, Grade III
  • CuZn38Pb2 / CuZn38Pb3 / CuZn39Pb2 / CuZn39Pb3 / CuZn40Pb2 / CuZN43Pb2
  • CW603N / CW606N / CW608N / CW612N / CW614N / CW617N / CW623N
  • CZ120 / CZ121 / CZ122 / CZ131
  • C37700 / C35300 / C36000
  • MS58
  • Lead Free
  • DZR Brass
  • Copper C101/CW004A
  • Beryllium Copper
  • Chromium Copper
  • Steel
  • Aluminium
  • Bronze NES833, CA 104, PB1, PB102
  • Any Other Equivalent Grades




Size We Handle

  • Circumscribe Diameter 1.5MM to 200MM




Length we Handle :

  • Turning Length 400 MM




Finish we Serve

  • Nickel
  • Zinc
  • Tin
  • Lead
  • Chrome
  • Silver
  • Gold




Tolerance we maintain

  • Upto 0.01MM



Surface Roughness

  • Ra _up to 0.40 ยต




Thread We Serve

  • Metric ISO Thread [M]
  • Metric ISO Fine Thread [MF]
  • Unified Coarse thread [UNC]
  • Unified Fine thread [UNF]
  • Unified Coarse thread for Screw thread inserts [EG UNC(STI)]
  • Unified Extra Fine thread [UNEF]
  • British Standard pipe thread [BSP] OR [BSPT] OR [G]
  • Whitworth Standard parallel internal pipe thread [RP]
  • British Standard Whitworth thread [BSW]
  • British Standard Fine thread [BSF]
  • Steel conduit thread DIN 40 430 [Pg]
  • British Association Standard thread [BA]
  • American standard straight pipeThread [NPSM]
  • American standard straight pipe thread [NPT]
